Product Summary

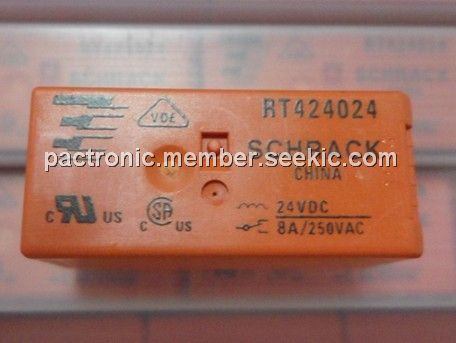

The RT424024AP is a Power PCB Relay. The applications of the RT424024AP include Domestic appliances, heating control, emergency lighting, and modems.

Parametrics

RT424024AP absolute maximum ratings: (1) Contact configuration: 2 CO or 2 NO; (2) Contact set: single contact; (3) Type of interruption: micro disconnection; (4) Rated current: 8A, UL: 10A; (5) Rated voltage/max. Switching voltage AC: 250/400 VAC; (6) Limiting continuous current: UL: 10 A; (7) Maximum breaking capacity AC: 2000 VA; (8) Limiting making capacity, max 4 s, duty factor 10%: 15A; (9) Coil power DC coil: typ 400mW.

Features

RT424024AP features: (1)2 pole 8A, 2 CO or 2 NO contacts; (2) DC- or AC-coil; (3) Sensitive coil 400mW; (4) Reinforced insulation; (5) WG version: Product in accordance to IEC60335-1; (6) RoHS compliant (Directive 2002/95/EC) as per product date code 0413.

Diagrams

RT424024AP dimension
