Product Summary

The RT424F12 is a general purpose relay.

Parametrics

RT424F12 absolute maximum ratings: (1)Rated coil voltage range: 5 to 24 VDC; (2)Coil power: typ 400 mW; (3)Operative range: 2; (4)Limiting voltage, % of rated coil voltage: 120%; (5)Minimum energization duration: 30 ms; (6)Maximum energization duration: 1 min at < 10% DF; (7)Coil insulation system according UL1446: class F.

Features

RT424F12 features: (1)Contact configuration: 2 CO; (2)Contact set: single contact; (3)Type of interruption: micro disconnection; (4)Rated current: 8 A, UL: 10 A; (5)Rated voltage / max.switching voltage AC: 240/400 VAC; (6)Limiting continuous current UL: 10 A; (7)Maximum breaking capacity AC: 2000 VA; (8)Limiting making capacity, max 4 s, duty factor 10%: 15 A; (9)Contact material: AgNi 90/10; (10)Mechanical endurance: > 2 x 106 cycles; (11)Rated frequency of operation with / without load: 15 / 1200 min-1.

Diagrams

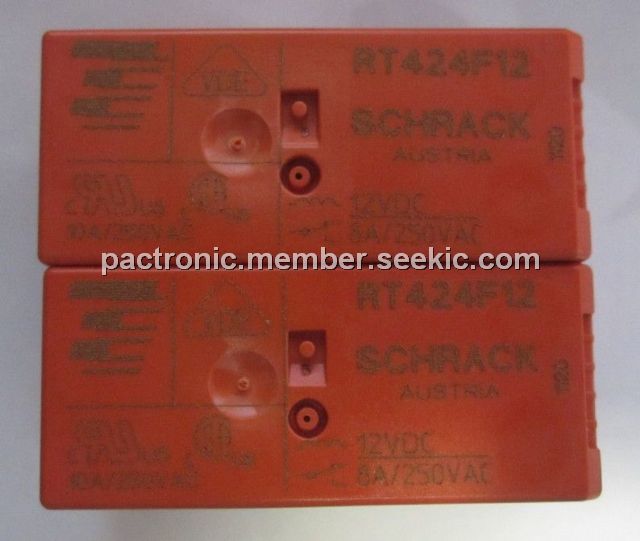

RT424F12 diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
RT424F12
RT424F12
TE Connectivity / Schrack
General Purpose / Industrial Relays DPDT 8A 12VDC 240Ohm GEN PURPOSE RELAY
Data Sheet
0-1: $2.29
1-25: $2.00
25-50: $1.81
50-100: $1.43
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
RT424005
RT424005
TE Connectivity / Schrack
General Purpose / Industrial Relays 5V 8A 2CO THT POWER RELAY
Data Sheet
0-1: $3.67
1-25: $3.31
25-50: $2.93
50-100: $2.80
RT424005F
RT424005F
TE Connectivity / P&B
General Purpose / Industrial Relays DPDT 8A 5VDC GEN PURPOSE RELAY
Data Sheet
0-4075: $1.20
RT424009
RT424009

RELAY GENERAL PURPOSE DPDT 8A 9V
Data Sheet
0-500: $1.21
RT424012
RT424012
TE Connectivity / Schrack
General Purpose / Industrial Relays DPDT 8A 12VDC PCB
Data Sheet
0-1: $1.55
1-25: $1.36
25-50: $1.23
50-100: $0.96
RT424012F
RT424012F
TE Connectivity / P&B
General Purpose / Industrial Relays DPDT 12VDC 8A PCB
Data Sheet
0-1: $1.01
1-25: $0.96
25-50: $0.93
50-100: $0.89
RT424018
RT424018
TE Connectivity / Schrack
General Purpose / Industrial Relays RELAY PWR DPDT 8A 18VDC PCB
Data Sheet
0-310: $1.63
310-500: $1.59
