Product Summary

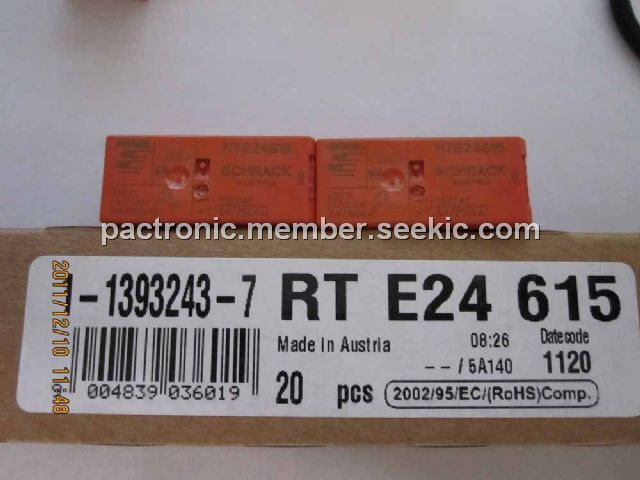

The RTE24615 is a Power PCB Relay. The applications of the RTE24615 include Domestic appliances, heating control, emergency lighting, and modems.
Parametrics
RTE24615 absolute maximum ratings: (1)Contact configuration: 2 CO or 2 NO; (2)Contact set: single contact; (3)Type of interruption: micro disconnection; (4)Rated current: 8 A, UL: 10A; (5)Rated voltage / max.switching voltage AC: 240/400 VAC; (6)Limiting continuous current UL: 10A; (7)Maximum breaking capacity AC: 2000 VA; (8)Limiting making capacity, max 4s, duty factor 10%: 15A; (9)Coil power DC coil: typ 400mW.
Features
RTE24615 features: (1)2 pole 8A, 2 CO or 2 NO contacts; (2) DC- or AC-coil; (3) Sensitive coil 400mW; (4) Reinforced insulation; (5) WG version: Product in accordance to IEC60335-1; (6) RoHS compliant (Directive 2002/95/EC) as per product date code 0413.

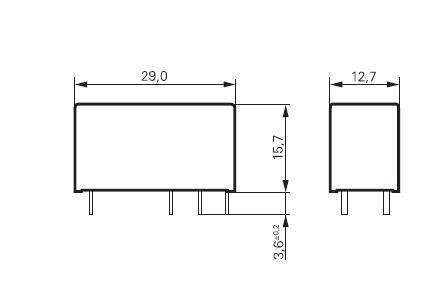

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 RTE24615 |
TE Connectivity / Schrack |
General Purpose / Industrial Relays DPDT 8 A 115VAC 500 |
Data Sheet |
|
|
||||||||||||
