Product Summary

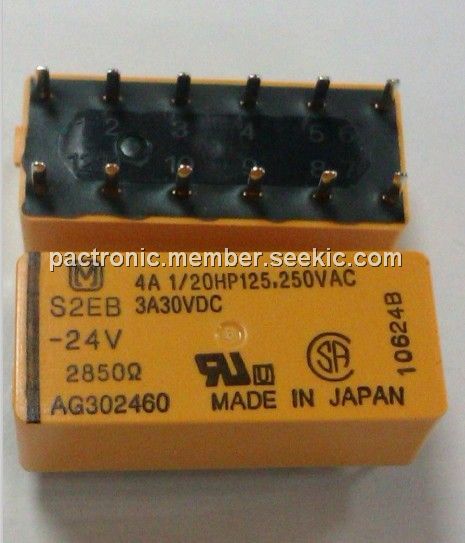

The S2EB-DC12V is a 4AMP polarized high density relay with high sensitivity.
Parametrics
S2EB-DC12V absolute maximum ratings: (1) Arrangement: 2 Form A 2 Form B, 3 Form A 1 Form B, 4 Form A; (2) Initial contact resistance, max. (By voltage drop 6V DC 1A): 50mΩ; (3)Initial contact pressure: Approx. 12g; (4)Contact material: Gold clad silver alloy; (5)Electrostatic capacitance: Approx. 3pF; (6)Thermal electromotive force (at nominal coil voltage): Approx. 3μV; (7)Nominal switching capacity: 4A 250V AC, 3A 30V DC; (8)Maximum switching power: 1000 VA, 90W; (9)Maximum switching voltage: 250V AC, 30V DC; (10)(48 VDC at less than 0.5A); (11)Max. Switching current: 4A (AC), 3A (DC); (12) Min. switching capacity: 100μA 100mV DC.
Features
S2EB-DC12V features: (1)A variety of contact arrangements 2 Form A 2 Form B, 3 Form A 1 Form B, 4 Form A; (2)Latching types available; (3)High sensitivity in small size 100mW pick-up and 200mW nominal operating power; (4)High shock and vibration resistance Shock: 50G Vibration: 10 to 55 Hz at double amplitude of 3 mm .118 inch; (5)Wide switching range From 100μA 100mV DC to 4 A 250 V AC; (6)Low thermal electromotive force Approx. 3μV; (7)Dual-In-Line packaging arrangement; (8)Amber types available.

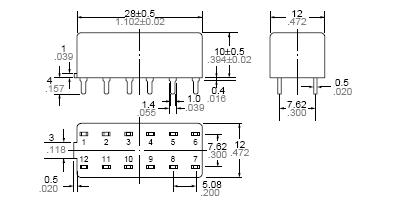

Diagrams
 |
