Product Summary
The SS-5GL13 is a Subminiature Snap Action Switch.
Parametrics
SS-5GL13 general specifications: (1) ratings: 5A at 125VAC; (2) actuator: simulated roller lever; (3) maximum operating force: 150gf; (4) contact form: SPDT; (5) terminals: solder terminals; (6) insulation resistance: 100mΩ at 500VDC.
Features
SS-5GL13 features: (1) Economical, subminiature snap action switch offers long service life (30 million operations minimum); (2) All models are free from overtravel restrictions, permit easy setting; (3) Wide switching capacity range from microvoltage/current loads (1mA at 5 VDC to high-capacity loads 10.1 A at 250 VAC); (4) Standard operating force, low force or super-low force models available; (5) RoHS Compliant.

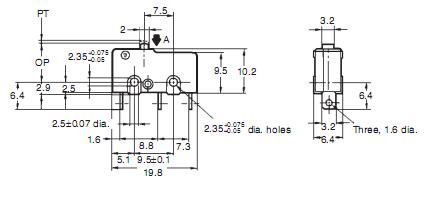

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SS-5GL13 |
Omron Electronics |
Basic / Snap Action / Limit Switches SIM RLLR HNG LVR SLD |
Data Sheet |
|
|
||||||||||||
 |
SS-5GL13-12 |
Omron Electronics |
Basic / Snap Action / Limit Switches Subminiature Basic Switch |
Data Sheet |
|
|
||||||||||||
|
SS-5GL13-3 |
Omron Electronics |
Basic / Snap Action / Limit Switches Subminiature Basic Switch |
Data Sheet |
|
|
||||||||||||
|
SS-5GL13-2 |
Omron Electronics |
Basic / Snap Action / Limit Switches Subminiature Basic Switch |
Data Sheet |
|
|
||||||||||||
|
SS-5GL1363-F |
Omron Electronics |
Basic / Snap Action / Limit Switches Subminiature Basic Switch |
Data Sheet |
|
|
||||||||||||
|
SS-5GL1318 |
Omron Electronics |
Basic / Snap Action / Limit Switches MINIATURE BASIC SWCH |
Data Sheet |
|
|
||||||||||||
|
SS-5GL1373 |
Omron Electronics |
Basic / Snap Action / Limit Switches Subminiature Basic Switch |
Data Sheet |
|
|
||||||||||||
|
SS-5GL1375T |
Omron Electronics |
Basic / Snap Action / Limit Switches Subminiature Basic Switch |
Data Sheet |
|
|
||||||||||||
