Product Summary

The G6D-1A-ASI-DC24V is a power PCB relay.

Parametrics

G6D-1A-ASI-DC24V absolute maixmum ratings: (1)Rated load: 5 A at 250 VAC, 30 VDC; (2)Contact material: Ag alloy; (3)Carry current: 5 A; (4)Max. operating voltage: 250 VAC, 30 VDC; (5)Max. operating current: 5 A; (6)Max. switching capacity: 1,250 VA, 150 W; (7)Min. permissible load: 10 mA at 5 VDC.

Features

G6D-1A-ASI-DC24V features: (1)Reduced board space ideal for high-density mounting (45% smaller than the surface area of G6B); (2)Slim package: measures 65 W x 175 L x 125 H mm; (3)Switches loads up to 5 A, 250 VAC/30 VDC; (4)Sealed construction allows automatic soldering and cleaning; (5)Long service life: up to 300,000 operations with a 2 A, 250 VAC/30 VDC load; (6)Rated for D150 pilot duty by UL, CSA; (7)Optional mounting socket simplifies relay installation and; (8)servicing of finished equipment; (9)RoHS Compliant.

Diagrams

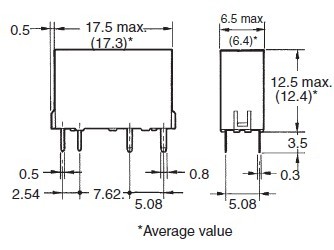

G6D-1A-ASI-DC24V Dimensions

G6D-1A-ASI DC12
G6D-1A-ASI DC12

RELAY GEN PURPOSE SPST 5A 12V
Data Sheet
0-1: $3.82
1-25: $3.44
25-50: $3.06
50-100: $2.75
100-250: $2.60
250-500: $2.29
500-1000: $2.06
G6D-1A-ASI DC21 BY OMB
G6D-1A-ASI DC21 BY OMB
Omron Electronics
General Purpose / Industrial Relays Power PCB Relay
Data Sheet
0-340: $2.56
340-500: $2.45
500-1000: $2.42
1000-2000: $2.33
G6D-1A-ASI DC24
G6D-1A-ASI DC24

RELAY GEN PURPOSE SPST 5A 24V
Data Sheet
0-1: $4.11
1-25: $3.70
25-50: $3.29
50-100: $2.96
100-250: $2.79
250-500: $2.47
500-1000: $2.22
G6D-1A-ASI DC5
G6D-1A-ASI DC5

RELAY GENERAL PURPOSE SPST 5A 5V
Data Sheet
0-1: $3.82
1-25: $3.44
25-50: $3.06
50-100: $2.75
100-250: $2.60
250-500: $2.29
500-1000: $2.06
G6D-1A-ASI DC6
G6D-1A-ASI DC6
Omron Electronics
General Purpose / Industrial Relays Power PCB Relay
Data Sheet
0-1: $4.90
1-25: $4.45
25-50: $4.09
50-100: $3.77
G6D-1A-ASI DC9
G6D-1A-ASI DC9
Omron Electronics
General Purpose / Industrial Relays Power PCB Relay
Data Sheet
0-1: $5.74
1-25: $5.21
25-50: $4.78
50-100: $4.41
