Product Summary

The G6RN-1-5V is a Heavy-duty Miniature Relay.

Parametrics

G6RN-1-5V absolute maximum ratings: (1) Rated voltage: 5V, 12V, 24V, 48V; (2) Rated current: 43.9mA, 18.3mA, 9.2mA, 5.2mA; (3) Coil resistance: 114Ω, 655Ω, 2620Ω, 9210Ω; (4) Must operate voltage: 70% max. of rated voltage; (5)Must release voltage: 10% min. of rated voltage; (6)Max. Voltage: 110% of rated voltage; (7) Power consumption: Approx. 220mW; (8) Operating Temperature: -40℃ to 85℃; (9) Storage Temperature: -40℃ to 85℃.

Features

G6RN-1-5V features: (1)Incorporates environmentally-friendly, cadmium-free contacts; (2)Variety of contact forms: SPDT or SPST-NO (continuous current rating: 8A); (3)Low profile (0.39W x 1.12L x 0.59H inches); (4)High dielectric strength of 4 kV with 8 mm creepage/clearance.; (5)Sealed plastic construction; (6)Ideal for switching contactors, solenoids and motors; (7)RoHS Compliant.

Diagrams

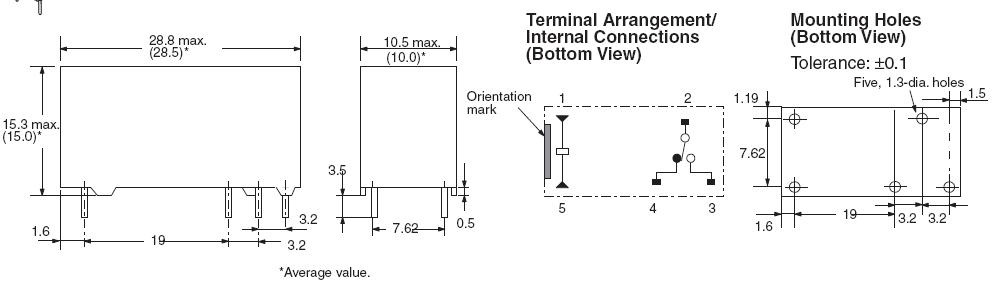

G6RN-1-5V dimension
