Product Summary

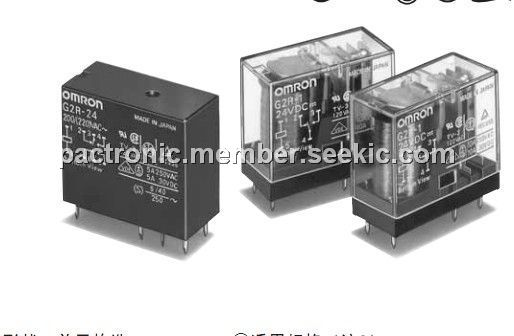

The G2R-14-12V is a power PCB relay.

Parametrics

G2R-14-12V absolute maximum ratings: (1)Rated load, Resistive load, 10 A at 250 VAC; (2)Rated load, Inductive load; (3)Contact material: Ag-Alloy; (4)Carry current: 10 A (8A); (5)Max. operating voltage: 380 VAC, 125 VDC; (6)Max. operating current: 10 A (8A); (7)Max. switching capacity: 2,500VA, 300W; (8)Min permissible load: 100 mA, 5 VDC.

Features

G2R-14-12V features: (1)Creepage distance of 8.0 mm min. between coil and contact; (2)Dual-winding latching type available; (3)Plug-in and quick-connect terminals available; (4)High sensitivity (360 mW) and high capacity (16 A) types available; (5)Highly stable magnetic circuit for latching endurance and excellent resistance to vibration and shock; (6)Safety-oriented design assuring high surge resistance: 10,000 V min. between coil and contacts; (7)UL recognized / CSA certified. RoHS Complaint.

Diagrams

G2R-14-12V dimension
